Wi-Fi 7 & Bluetooth 5.3 module
-
16.0 × 20.0 × 1.8 mm
-
-20 °C to +70°C
KEY FEATURES
2.4/ 5/ 6 GHz Wi-Fi bands and Bluetooth 5.3
Dual Band Simultaneous (DBS)
4096 QAM
Multi-Link Operation (MLO)
Ultra-low latency
Multi-User Multiple Input Multiple Output
(MU-MIMO)
Wide operating temperature range
(-20 °C to +70 °C)
OVERVIEW

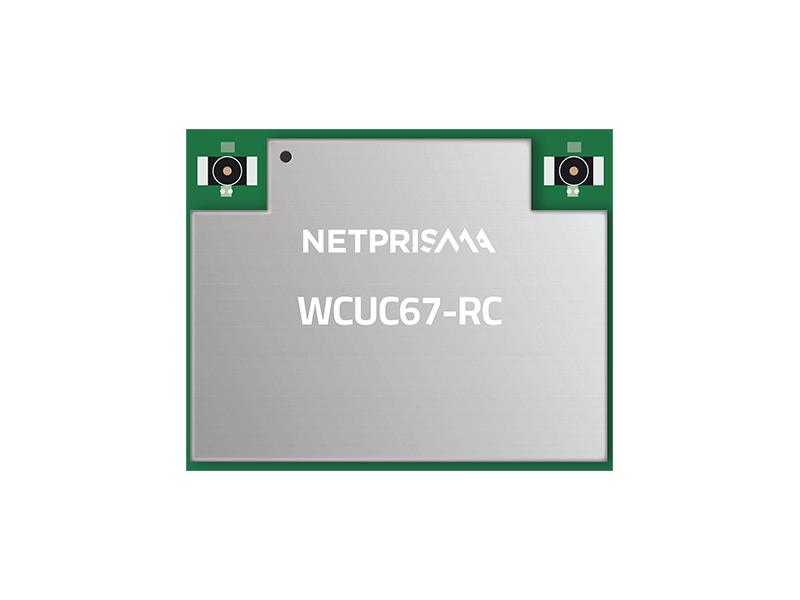

The NetPrisma WCUC67-RC module integrates Wi-Fi 7 and Bluetooth 5.3. It offers simultaneous operation on both 2.4 GHz + 5 GHz and 2.4 GHz + 6 GHz frequencies. Utilizing 4K-QAM and 160 MHz bandwidth, the WCUC67-RC boasts a stunning maximum data rate of 3.6 Gbps, ensuring swift and efficient data transfers.
One of the module’s standout features is Multi-Link Operation (MLO), which enables routers to utilize multiple wireless bands and channels concurrently when connecting to a Wi-Fi 7 client.
The WCUC67-RC's support for MLO brings a faster data rate, significantly reduced latency and higher network reliability for end-users. The WCUC67-RC also integrates dual Bluetooth functionality, supporting LE audio as well as 2 Mbps Bluetooth Low Energy (BLE) and BLE Long Range.
With its high data rate, lower latency and network reliability, the WCUC67-RC is ideal for demanding applications such cloud gaming, 8K A/V streaming, AR/VR experiences, industrial IoT solutions and telemedicine.
