Smart module with Wi-Fi & Bluetooth
-
51.0 × 49.0 × 4.15 mm
-
-30 ° C to +75 ° C
KEY FEATURES
1 × Kryo Prime @ 3.2 GHz + 4 × Kryo Gold @ 2.8 GHz + 3 × Kryo Silver @ 2.0 GHz
Adreno™ 740 GPU
Neural processing unit
Tri-band 2 × 2 MIMO DBS, HBS Wi-Fi 7
Bluetooth 5.3
Video encoder: 4K @ 120 fps; 8K @ 30 fps / Video decoder: 4K @ 240 fps; 8K @ 60 fps
OVERVIEW

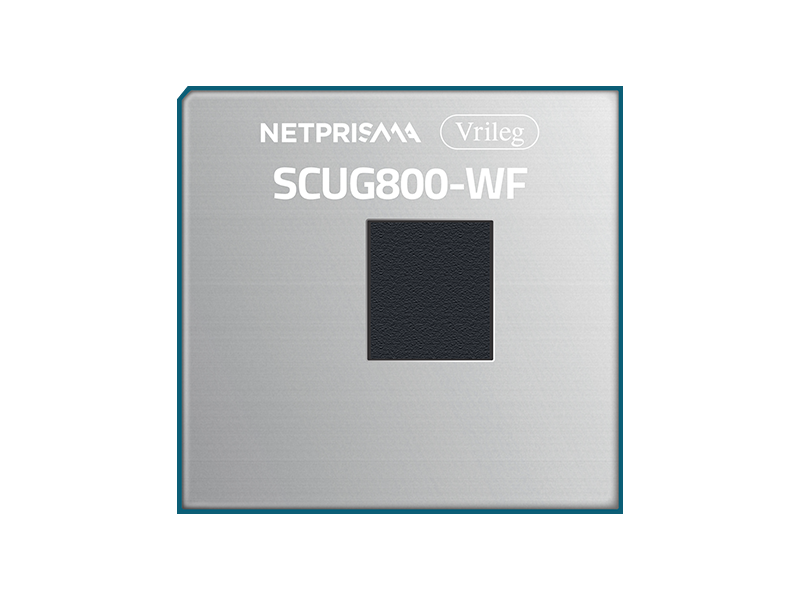

The SCUG800-WF is NetPrisma’s flagship Android Smart module. Utilizing Qualcomm's QCS8550 chipset, it integrates an octa-core high-performance KryoTM CPU, Adreno™ 740 GPU, Adreno 1295 DPU, Adreno 8550 VPU, HexagonTM DSP and SpectraTM ISP. The module supports Wi-Fi 7, Bluetooth 5.3, and 2 × 2 Wi-Fi MIMO technology. The SCUG800-WF is perfectly suited for both industrial and consumer use cases that demand high computing power, AI functionality and multimedia capabilities.
The module's versatility is further enhanced by interfaces, including LCM, camera, touch panel, I2S, PCIe, UART, USB, I2C, and SPI. The SCUG800-WF is ideal for use cases such as video conferencing systems, live streaming devices, gaming platforms, edge computing solutions, robots, drones, AR/VR experiences, intelligent retail systems and smart safety measures.
