Multi-mode Smart LTE module with Wi-Fi & Bluetooth
-
40.5 × 40.5 × 2.85 mm
-
150Mbps (DL) / 50Mbps (UL)
-
-35°C ~ +75°C
KEY FEATURES
Exceptional application and system performance based on the quad-core Cortex-A53 64-bit processor
Enhanced mobile rendering APIs for image and video applications via Adreno™ 702 GPU
Worldwide LTE, UMTS/ HSPA+ and GSM/ GPRS/ EDGE coverage
Dual ISPs and up to 25 MP camera @ 30 fps
Recording and playback of 1080P videos @ 30 fps
Multi-constellation GNSS receiver for applications requiring fast and accurate fixes in any environment
OVERVIEW

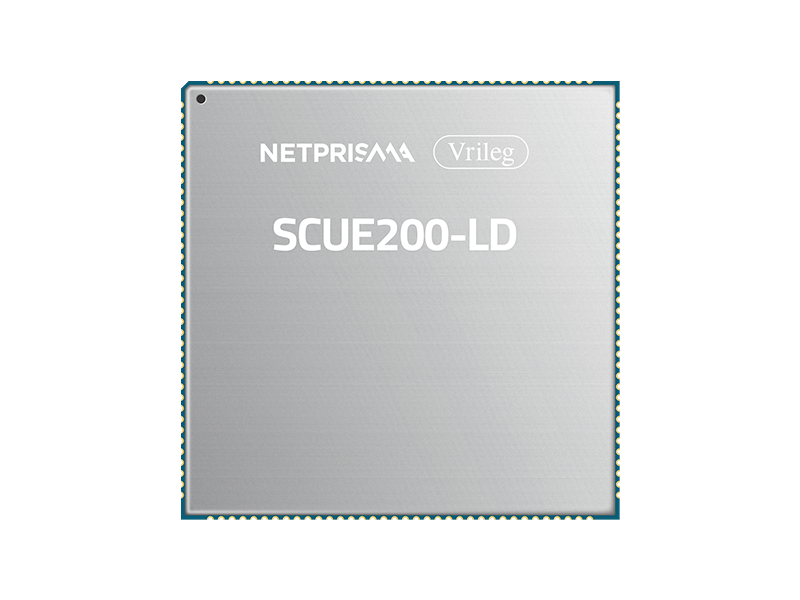

The NetPrisma SCUE200-LD is a multi-mode Smart LTE Cat 4 module that supports multiple-input multiple-output (MIMO) technology, utilizing multiple antennas at the receiver end on the same frequency band to significantly reduce errors and enhance data rate. It seamlessly integrates high-speed wireless connectivity with an embedded multi-constellation GNSS receiver, supporting GPS, BDS, GLONASS, Galileo, QZSS, SBAS, NavIC, and L1 for positioning capabilities.
Powered by Qualcomm's 64-bit quad-core Cortex-A53 processors and integrated Adreno™ 702 GPU, this module is perfectly suited for both industrial and consumer applications that demand high data rates, multimedia functionality and long lifetime support.
Offering interfaces including LCM, camera, touch panel, MIC, line out, UART, USB, I2C and SPI, the module is suitable for edge devices, edge computing solutions, smart POS systems, smart cash registers, smart home gateways, smart robots, wearable technology, smart safety measures, PDAs and tablets, vending machines, delivery lockers, as well as video streaming and entertainment systems.
