LTE Cat 1 module
-
29.0 × 25.0 × 2.45 mm
-
10 Mbps (DL) / 5 Mbps (UL)
-
-40 °C to +85 °C
KEY FEATURES
Cost-effective and low-power LTE connectivity optimized for broadband IoT applications
Multi-band LTE and UMTS/HSPA(+) coverage
Compact SMT form factor ideal for size-constrained applications with extended operation temperature range
Embedded power management unit (PMU) featuring ultra-low deep-sleep current consumption
Simple migration from 2G/3G to 4G with a flexible and scalable platform
OVERVIEW

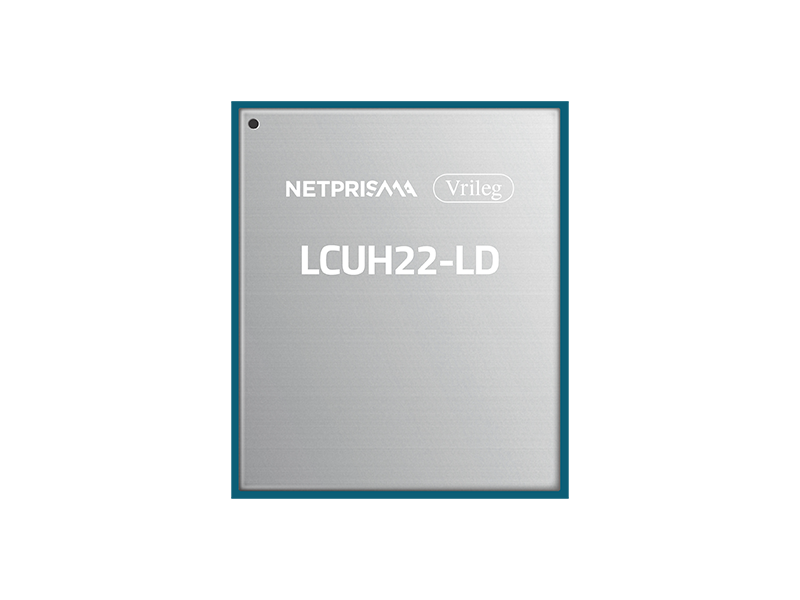

The NetPrisma LCUH22-LD is an LTE Cat 1 module optimized for M2M and IoT use cases. It employs 3GPP Rel-11 LTE technology and offers maximum data rates of 10 Mbps downlink and 5 Mbps uplink, making it a perfect fit for IoT applications that prioritize longevity and reliability and that do not demand high-speed connectivity.
The LCUH22-LD ensures connectivity even in remote locations lacking 4G coverage thanks to backward compatibility with UMTS/HSPA(+) networks. Its support for standard interfaces and USB serial drivers for Windows 8.1/10/11, Linux and Android makes it well-suited to IoT applications such as smart metering, wearable technology, environmental monitoring, asset tracking, fleet management, and smart safety and alarm systems.
