5G RedCap Sub-6 GHz LGA module
-
29.0 × 32.0 × 2.4 mm
-
SA: 223 Mbps (DL) / 123 Mbps (UL) LTE: 195 Mbps (DL) / 105 Mbps (UL)
-
-40 °C to +85 °C
KEY FEATURES
Worldwide 5G and 4G coverage
5G SA mode, with 5G LAN / URLLC / slicing features
Multi-constellation GNSS receiver (optional) available for applications requiring fast and accurate fixes in any environment
Feature refinements: DFOTA and VoLTE / VoNR (optional)
PCIe 2.0 interface for Wi-Fi / Bluetooth
LGA form factor, small size
OVERVIEW

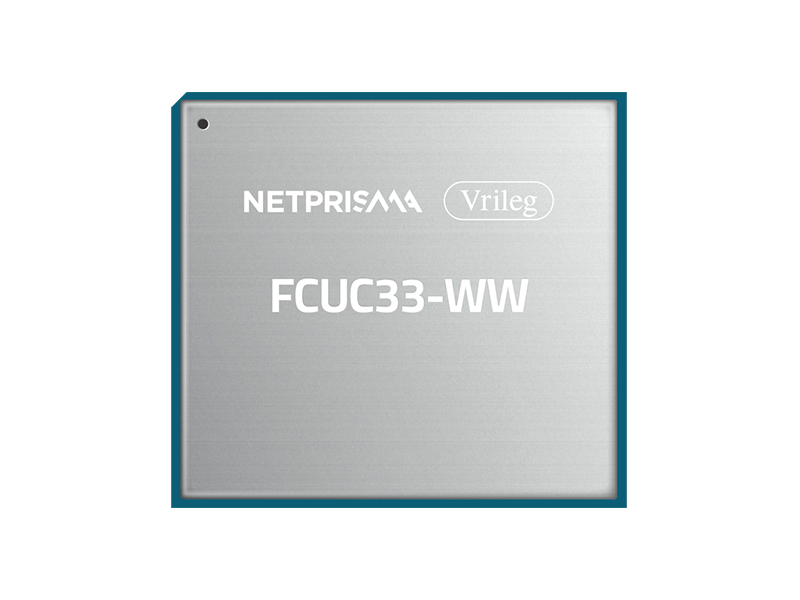

The NetPrisma FCUC33-WW is a 5G RedCap Sub-6 GHz LGA module that utilizes 3GPP Rel-17 RedCap technology to deliver 5G LAN, URLLC and network slicing. The module offers a theoretical peak data rate of 223 Mbps downlink and 123 Mbps uplink. The module supports LTE Cat 4 and 5G Sub-6 SA mode and is backward compatible with Rel-15 and Rel-16 networks.
Designed for industrial and commercial use, the FCUC33-WW is an industrial-grade module, encompassing GPS, GLONASS, BDS and Galileo satellite options. The built-in GNSS receiver greatly streamlines product design and provides faster, more accurate and dependable positioning capability.
The module meets needs for medium speed, large capacity, low latency and high reliability. It also offers flexibility for accommodating customers’ designs.
